Standing Well Back
Railway IEDs

Strategic IED campaign on railways 1899-1902

I continue to uncover remarkable details of the Boer IED campaign against the British in South Africa.  I have detailed some of these in previous posts and railway attacks here in particular.  What I hadn’t quite realised was the scale of the campaign, which is huge, and indeed provides a template not only for the Russian partisan campaign against Nazi railways of WW2, but also in a sense the insurgent campaign in Iraq in 2003/2004.  Also see my other posts on railway attacks by clicking on the link of subjects in the right hand column – quite a few over history, including Lawrence of Arabia, the German East African campaign of WW1 and others.

The details I’m going to show you highlight that this was very much a strategic campaign targeting the British Military’s ability to move around South Africa. It also goes to demonstrate a comprehensive range of operations by the British military to respond to these IED attacks, by repairing the railway system, maintaining it, and implementing a range of C-IED security measures, not least being the “blockhouse” concept where small detachments of soldiers established patrol bases at frequent intervals along the railway.

I think it’s important to mention that the Boers were particularly effective at targeting the railway in a number of ways:

  1. By taking out key bridges. The number of bridges destroyed and then either repaired or replaced by the British Army is staggering. The Boers had significant numbers of personnel familiar with using explosives, and no lack of explosives.
  2. By blowing numerous culverts were the railway line crossed them.
  3. By damaging rails.
  4. By attacking trains and rolling stock either moving on the line or in sidings. sometimes by explosives and sometimes by simple sabotage such as removing key components, or by fire.
  5. By attacking supporting infrastructure such as watering points and water supplies. Coal supplies were set alight in depots.

There were of course plenty of Boers from the mining community with the experience to set and lay simple charges, and the IED technology evolved over time. My guess is that with no great shortage of explosives, a knowledge of what explosive placement and quality to use evolved rapidly over time – certainly the images below suggest sufficient expertise (or sufficient quantities of explosive) to blow large structures.

A variety of devices initiation methods were used:

  1. Simple burning-fuze time detonation for bridges, and track where no enemy was present.
  2. Command wire attack in an ambush situation on a train coming down the line, so the Boer’s were in sight of, but a tactical bound away from the site of the explosion.
  3. Victim operated devices placed under rails which were initiated by the train (as discussed here)

I’ve obtained a copy of the report written by the British Army Royal Engineer responsible for running and repairing the railway, where he details a lot of the repair work undertaken – from these I can derive details of the successful IED attacks over quite a period. To be clear, this account doesn’t focus on the IED attacks themselves in particular but the running of the railway as a system, and with the repair process as a part of that but we can draw useful analysis of the IED campaign against the railways from it.  So here’s some summaries and exemplar detail. I should mention that the name of this Engineer officer is Édouard Percy Cranvill Girouard. (!) Or rather Lieutenant Colonel EPV Girouard KCMG, DSO, RE, to give him his full title.

  • Largely because of the distances involved, the British Army, relied extensively on the railway system for strategic movement and routine logistics. There were 4600 miles of track in the system in a series of interconnected networks.
  • The British Military took over the operation of the railways completely in 1899, retaining local staff were possible. There were, of course, challenges were railway works were Boer sympathisers. This was a managerial challenge. A huge “lesson-learned” for the Royal Engineers was the need to develop competency in complex railway systems management.
  • Repairs to the railways were often carried out under fire, or at least in the presence of the enemy
  • Water is a crucial component of running a steam railway and the Boers realised this and disrupted water supplies too. The British on occasions resorted to running “water trains” to supply water for other trains. At one point the entire water supply for the railways around Bloemfontein was cut by the Boers from April 1900.
  • The number of bridges damaged by explosions is significant. here’s a summary of bridges reconstructed following an attack – divided into two lists depending on whether they were built originally in imperial dimensions or metric:

So that’s a total of 278 railway bridges requiring reconstruction following attack by the Boers with explosives.  After these were repaired, military posts were set up to guard every span over 30ft – leaving only smaller bridges,  culverts and regular track as the target for Boer IEDs. As you can see, that’s quite a manpower bill in itself in terms of a counter-IED strategy. Later, blockhouses were set up providing a blockhouse protected against rifle fire and surrounded by barbed wire every 2000 yards along the railway lines, each manned by a small number of troops (about ten each) – quite an investment in resources, but crucial to keep logistics functioning.

Here’s just a few of the bridges damaged by Boer IEDs, and subsequently repaired:

The Modder River Bridge:

The Vaal River Bridge:

The Colenso Bridge over the Thukela river with two parallel Royal Engineer replacement bridges being built (often under enemy fire)

The Orange River bridge, with replacement bridge alongside

The Norvalspont Bridge: This bridge was repaired in 14 days, or at least a secondary Laine installed (see the rails at the base)..

The Bridge at Fourteen Streams

I could post many more pictures of IED damaged bridges, but I hope I’ve got my point over that this was a strategic IED campaign, and required a strategic repose from he British Army.  The files I have obtained detail the amazingly short periods of time it took the Sappers to temporarily rebuild many of these significant bridges.  Here’s an excerpt of just one page of dozens more, note the speed of the engineer operation:



As well as these major bridges, many smaller bridges were also blown along with probably hundreds of culverts. Lines and points were damaged either by pulling them up or damaging them too with explosives. To give an idea of intensity of IED attacks, this is an excerpt listing just one month of attacks on just one part of the network:

With the adoption of the pressure sensitive IEDs used by the Boers, train engines were armoured to protect the crew and then trucks were pushed ahead of the engine on every “first train of the day” as sacrificial elements to initiate any IEDs ahead of the train.

One particular counter-measure against IEDs that I have discovered fascinates me and returns to the theme of Remotely Operated Vehicles. An “inventor” in England suggested deploying a carriage powered by a heavy electric motor some distance ahead of the engine, to which it was connected by long electric leads. So a wire controlled ROV on rails, in effect. This was trialed in theatre (like sometimes such ideas still are!) but found to be impractical, for the following reasons:

  • It was sacrificial and was expensive in itself to be replaced.
  • It was difficult to control, keeping the wires sufficiently taut so the train didn’t run over them or have the leads pulled from the controller.
  • The wires caught in any trackside object (including trees, blockhouses, telegraph poles etc.
  • It couldn’t cope with curves without causing more problems.
  • The Boers had already started using electrically initiated command wire IEDs anyway, so could ignore the ROV.

Nonetheless this demonstrates, that even in 1901 that innovative ideas were being sought to deal with IED threats. And .. it’s another early ROV.

With regards to other innovations, this next one is a bit peculiar too. Over time the “blockhouses” placed 200 yards apart were added to so there was even less distance between them. The gaps between were under observation (in some cases at night with the use of searchlights) to prevent insurgents placing IEDs on the rails and patrolled frequently. Do this was a strategic effort to observe all of the communication routes used by there British.  Another innovative concept implemented, I kid you not, was the use of specialised bicycles.  These “war cycles” consisted, at first, of two bicycles, fastened on a common frame with wheels adapted so that the cycles ran on opposite rails.  two sliders would pedal between blockhouses providing route coverage. The adapted wheels enabled the cyclists to use both hands to fire weapons , and progress was relatively stealthy.  Later, a larger “8 man” war-cycle was built proving more firepower. a lot of these machines were made in Cape Town and used by the Royal Australian Cycle Corps.

Other innovative responses to attacks included this fabulous add-on armour to a train (admittedly not necessary against IEDs). British soldiers, almost inevitably, came up with the nickname:

The conflict also prompted innovative use of other battlefield technologies such as armoured vehicles, and use (by both sides) of wireless radio communications – perhaps a first in a conflict.

To summarise, I think we can see in this conflict:

  • A strategic and extensive IED campaign by the Boers as a part of an insurgency campaign. The patterns of similar strategies with later campaigns up to the modern day are clear, and in particular the Russian inspired partisan campaign against the Nazi rail system in WW2.
  • A coherent response of sorts from the British Army, in terms of resourcing appropriate management control of the crucial national rail network
  • A component of that response included resourcing repair teams and military engineering capabilities of sufficient size and flexibility to respond to the intensity of IED attacks
  • A manpower intensive (but ultimately successful) security operation to protect the exposed logistic capability
  • A search for innovative counter IED methodologies and ideas, some of them implemented successfully but time wasted on others. Sounds familiar.





VBIED

Two-Ton Boer Train VBIED 1902

I wrote recently about  trains or carriages on railways full of explosives sent towards each other by both sides (the British and the Boers) at the Siege of Mafeking in South Africa in 1899/1901, and I’ve just uncovered another from the following year.

In 1902 a small British Garrison at Okiep in the Northern Cape region was surrounded by Boer forces. On 1 May 1902, the Boer commandos launched a VBIED attack on Okiep, using the commandeered locomotive “Pioneer” of Concordia’s Namaqua United Copper Company to propel a an IED in the form of a wagon-load of dynamite into the besieged town.

Two tons of dynamite were loaded onto carriages behind the “Pioneer”. The train driver was Field Cornet Jan van Brummelen, and he was to be accompanied by two “Irish explosive experts”.  The men were to leap off the train before it arrived at the target. I’m pretty certain the device would be initiated by a timed burning fuze.

What followed is a little uncertain, as is often the case. Some reports suggest the protective defences at Okiep consisted of a barbed wire fence, which was erected across the railway line at Braakpits Junction, just north of the town. The points at the junction were rigged in some way to the fence, with the result that when the dynamite laden wagon breached the fence, it derailed at the points and spilled its load of dynamite on the ground, where it “burned out harmlessly without exploding”.  Other reports suggest that the local station master, Albert Gyngell, heroically turned the points to direct the train away from the town centre, and it subsequently derailed.  Here’s a pic of the train after the dynamite had burned away:

So, yet another in the long list of vehicle-borne IEDs that occurred (or in this case attempted) in history. The “remote delivery” mechanism for this vehicle-borne IED failed but the intent was clear.

I am uncovering many more IED attacks in this conflict than I had realised (thousands!) and will be blogging more about the comprehensive attacks the Boers made on the strategically crucial railways over a couple of years. There’s a fascinating story to be told – and it also involves the British Royal Engineers undertaken some remarkable bridging and other “counter-terrorist” or “counter-insurgent” responses to this comprehensive IED campaign against the key transport system in Such Africa. In some ways its presages there Russian sabotage campaign against the Nazi railway system in WW2 and the Iraqi insurgent campaign against US and UK road traffic in the early part of this century. Same techniques…

20th Century

A wire to pull a trigger

Historically, firearm mechanisms have often been used to initiate explosive devices, and I’ve blogged about plenty over recent years. Most recently this device here from 1582  shows a very early and very simple example.

I’ve come across a few more devices from the early 20th Century that apparently used a similar technique, perhaps perpetrated by Harry Orchard (aka Albert Horsley, aka Tom Hogan)  as part of the Colorado labor wars in 1903-1905.  I’ve blogged about some of Orchard’s stranger command IED switches before but I didn’t mention then the use of a command pull to pistol trigger.   Orchard was certainly comfortable making, placing, and laying command pull switches and perhaps he saw a pistol trigger as a more reliable system than pulling a cork from a bottle of acid!

Orchard’s case is complex – he worked, apparently, for both sides of a violent labor dispute and there are many accusations of “false flag” attacks. As to whether he committed the crime I’m about to mention, and why, I can’t be certain, but in one sense, for our purposes it doesn’t matter because we are interested in the mechanism and not the motivation or perpertrator.

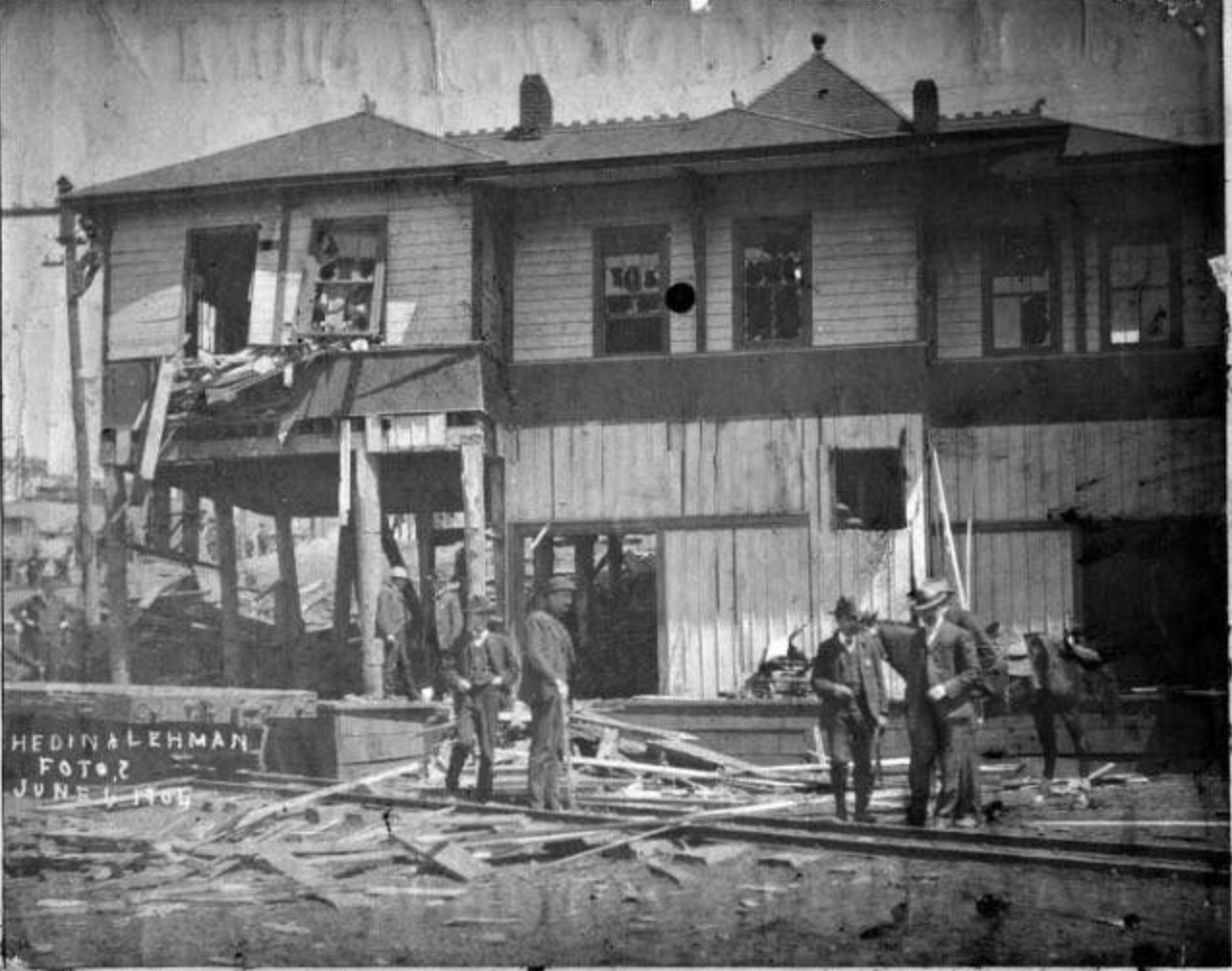

On 5th June 1904, about 60 strike-breaking miners were on the platform of the Independence Railway Depot in Colorado. They were waiting for a train to take them home in a nearby town. The miner’s union had been in a long and violent dispute with the mine owners.  The perpertrator had planted explosives under the platform, to be initiated by a loaded and cocked pistol placed immediately next to it. A 200ft (some reports suggest 400ft) wire had been  tied to the trigger and led away to a firing point at a safe distance.  The wire was pulled, the device exploded and 13 miners were killed and 9 injured, perhaps one of whom died subsequently.

There are conflicting reports about the nature of the explosive itself – some saying blackpowder, some dynamite.

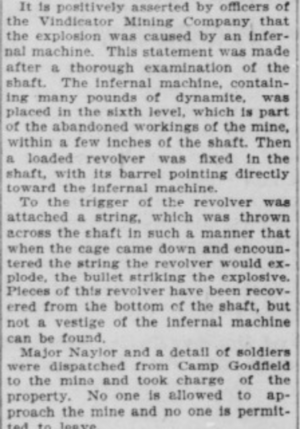

It also seems likely that a similar device may have been used to cause an explosion in the Vindicator Mine, probably by Orchard, in 1906, albeit that may have been set to act as a booby trap /victim operated switch.

Railway IEDs

A Missing Link – IED designs being passed through history

This is quite startling.  I have written before about Boer use of upturned-trigger-initiated IEDs used to attack British Railways in the Boer War, and more recently about how the same design of IED was used in the German East African Campaign

These devices were used again, exactly this same design, by the British against the Ottoman rail system in Arabia in 1917.  One of the issues in my mind was how “Bimbashi Garland”, the Arab Bureau’s explosives expert,  got to hear about Boer IEDs from an earlier war. In British eyes, this Boer design, then adopted by the Germans in 1915, became, by 1917, the “Garland mine” .  Thanks to the research of “JB” we have an answer as to how that happened and what an interesting answer it is. Bear with me as I explain

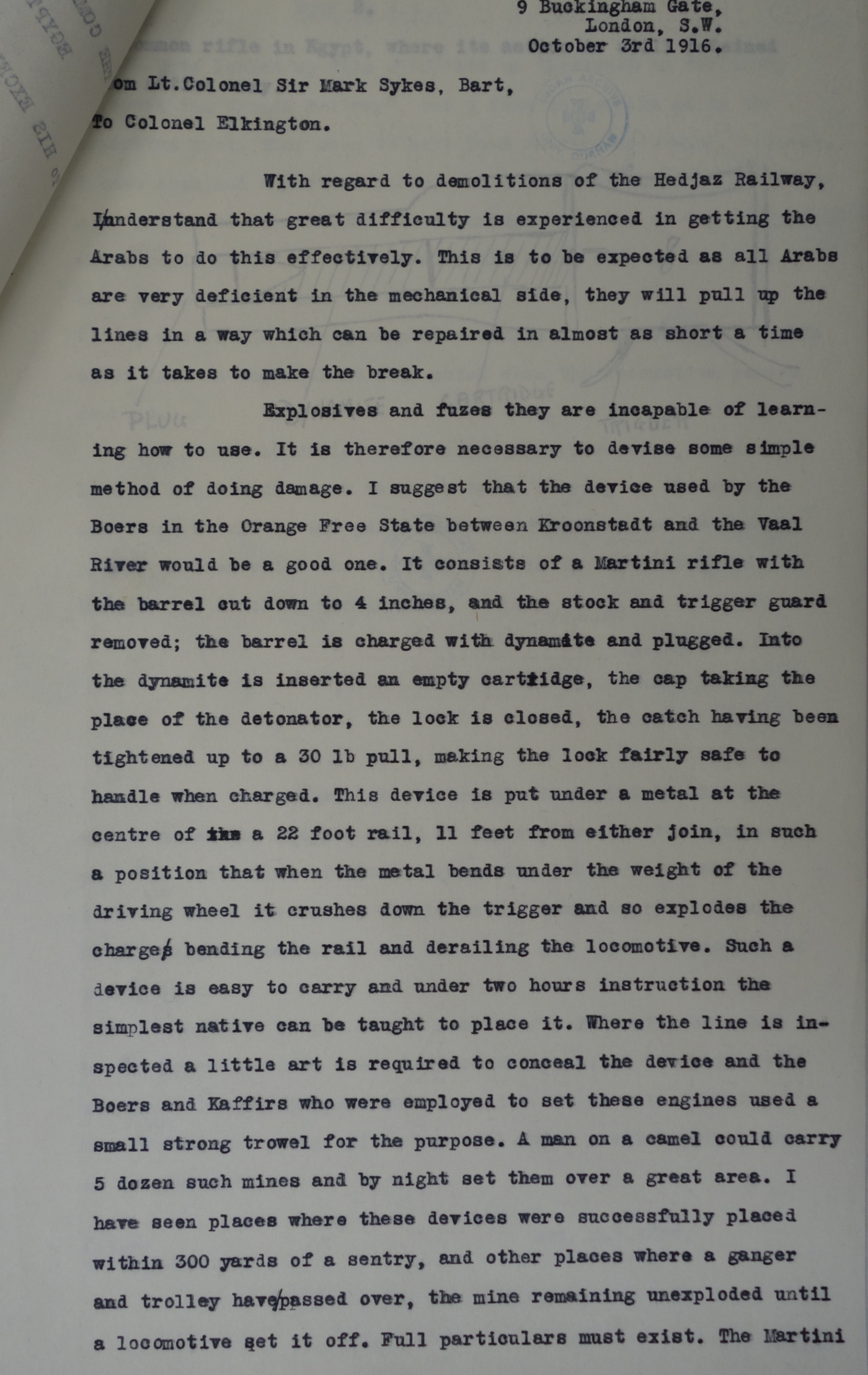

Here are parts of a letter sent from a relatively senior British Army officer with previous campaign experience in the Boer War. He sent a letter to the British Army in Egypt suggesting, specifically, that the Boer explosive device he had seen many years previously in South Africa be used to attack the Hejaz Railway in Arabia. Not only that, but he includes a detailed description of the device, which with minor variations is clearly the same device.

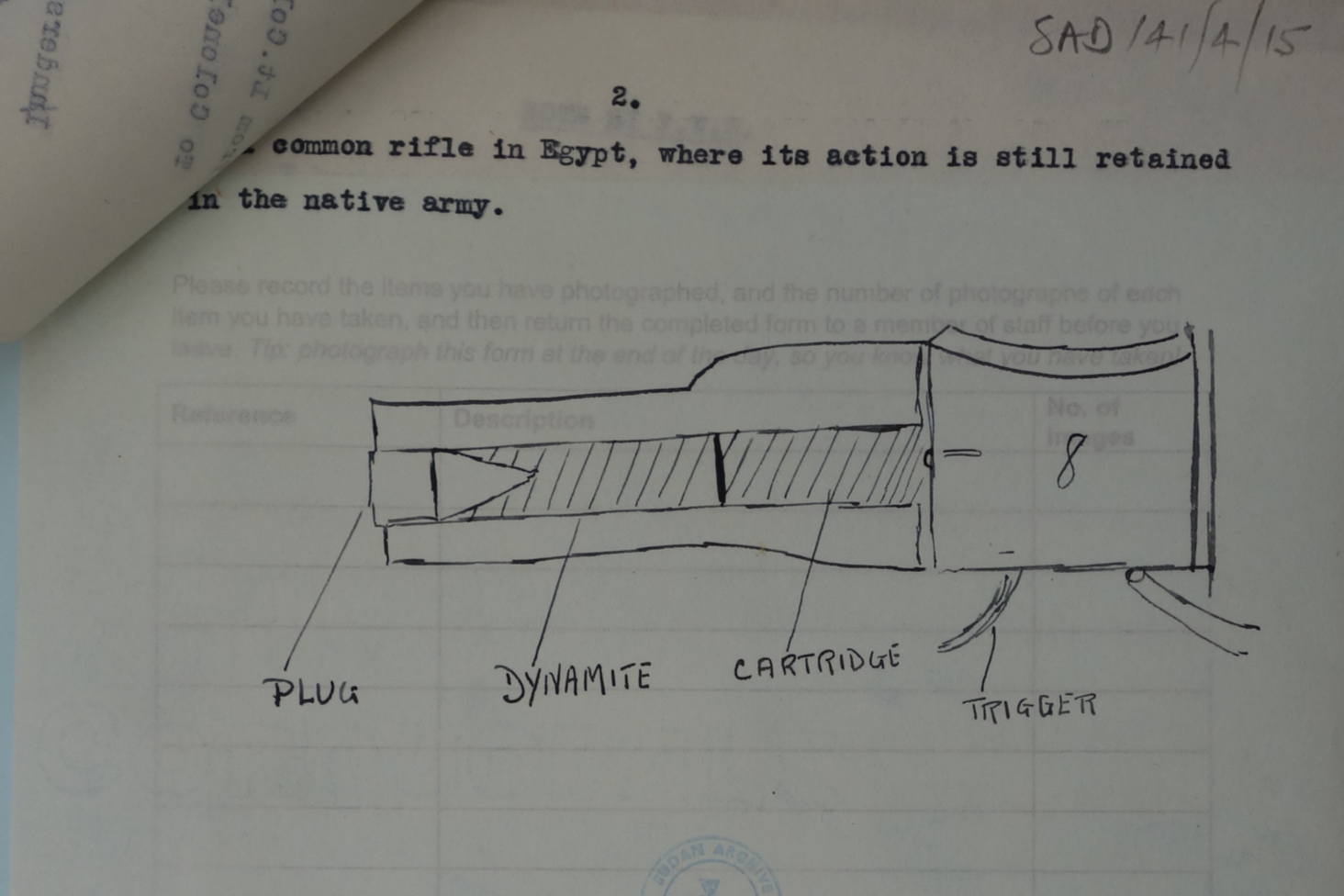

For comparison here’s a diagram of the device from one of my earlier posts

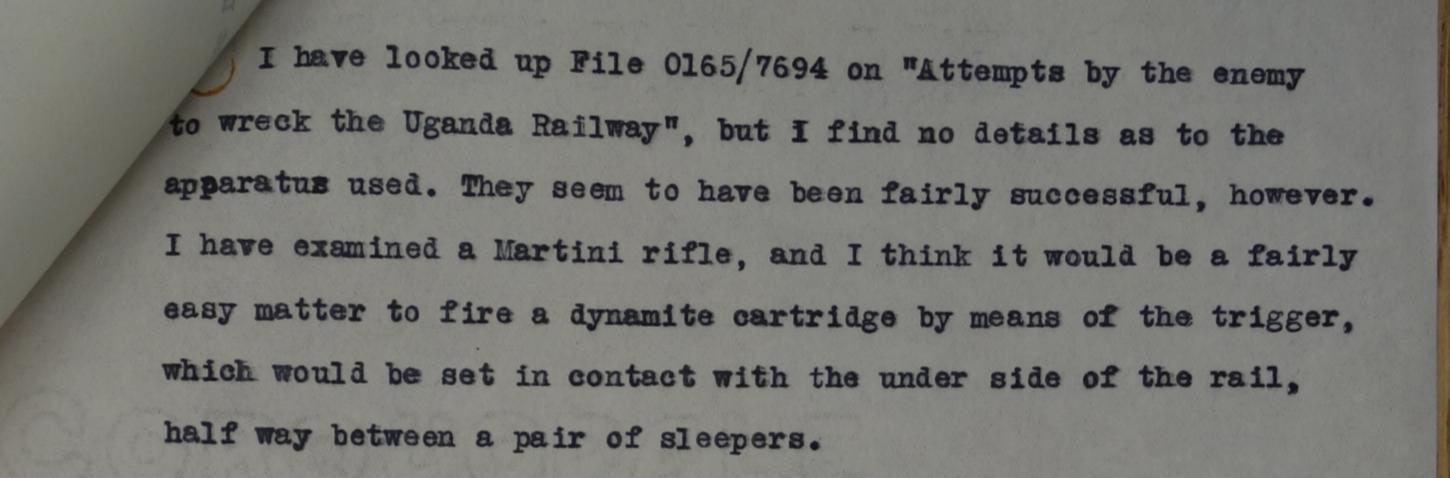

The correspondence is then passed from British HQ in Cairo to General Reginald Wingate whose headquarters was in Khartoum, with some comments from the Fortifications and Works Department.  Of particular note here is that they refer to the German use of such devices in East Africa, and comment that these devices have been effective. Here’s the comment from a Sgt in the Fortifications and Works department.

So that’s interesting… but it gets better. The original letter was dated October 1916. Herbert Garland, the former Ammunition Examiner NCO, now with a commission and on the staff of the Arab Bureau,  shortly afterwards began working “behind enemy lines” with the Arabs, and taking the advice/instruction of the letter writer , made his first attack on an Ottoman train in February 1917 – so the dates match up. Subsequently he trained the Arabs and other British officers on similar missions, including Lawrence of Arabia, to do the same. So we have a nice link between the Boer War, the German East African Campaign in WW1 and now the Arab revolt of 1917, all using the same design of IEDs, now called the “Garland Mine”.

What is perhaps even more interesting for historians is the identity of the original letter-writer, that at first I confess I didn’t notice.  It is written by Colonel Sir Mark Sykes…    Sykes is perhaps the key personality in terms of strategic influence on British activity in the Middle East, way beyond Lawrence.   Sykes, with the French diplomat Picot, was responsible for the “Sykes -Picot” agreement which divided the Middle East, and specifically the Ottoman Empire,  between the British and French, and this strategic diplomatic activity was going on at the same time as the letter was written – so this is so much more than a retired Army officer pontificating about how what he learned fighting against the Boers could have application in “modern war”.  This is the lead British strategic diplomat in the Middle East politely and diplomatically directing that an IED campaign using this specific explosive device be used to disintegrate the key aspect of the Ottoman empire’s strategic hold on Arabia. In the usual history books the strategic direction of the Arab Revolt is sometimes credited to the “Arab Bureau” but there were bigger cogs turning and directions being given to them. The Bureau’s efforts were at the operational level in this regard.  Here we can see history was being made in the Middle East and with these specific IEDs and with strategic thought. And not for the last time.

(Apologies for the racism displayed in the Sykes letter, but it is important to see, and perhaps adds to our understanding of his thought processes and how they may have impacted his strategic efforts)

19th Century

EOD Vehicles for moving IEDs

I have written before about French EOD capabilities developed in Paris in the latter part of the 19th century. One of their techniques was to recover IEDs to one of 4 laboratories scattered around Paris. It was a practice copied by Col Majendie in the UK for a while but fell out of fashion here for a number of technical reasons.

Here’s a reminder of Majendie’s hand cart used to transport IEDs to Duck Island in St James’s Park in about 1880. At other times Col Majendie (the UK’s first official bomb disposal expert), simply hailed a cab and told the driver to drive carefully.

I’ve just found this picture dated 1906 of the French EOD vehicle in Paris used to transport the IEDs (called “engines” in this picture):

A few years later this vehicle here was used by the Paris bomb squad. Note the container on the floor, which was loaded onto the back:



The concept remained in use in a number of places, not least the USA. In 1941, following a bomb incident that killed two detectives at the World’s Fair, Mayor LaGuardia funded development of a bomb containment unit made from woven steel cables. Vehicles like this remained in service for a number of decades, and indeed a vehicle delivered to the NYPD Bomb squad in 1965 was identical in terms of the containment structure, albeit mounted on a modern truck.

Modern vehicles look somewhat different.
