Standing Well Back
1830-1840

Command Wire Devices – Land, Sea and Air

I’ve written before how command-wire electrically-initiated explosive devices have been around for a couple of hundred years now. But I want to look at the subject again, obliquely, by highlighting the different environments in which these devices have been used. There are one or two fascinating diversions in this post.

Clearly, command wire devices on “land” have been around for centuries, derived originally from the “string” or “cord” pulled devices of the late 1500s such as the one discussed in an earlier post here.  Then in the early part of the late 1700s/early 1800s (started by Benjamin Franklin who was the first to electrically initiate an explosive (I think) they spread into broader use. See these earlier posts here and here.  In the 19th century, “minefields” were sometimes not  constructed from autonomous victim operated mines, but rather command initiated devices, controlled from some form of command post.  See this one below from the US Civil War era, showing an underground store from which “torpedoes” (buried mines) were initiated on the battlefield in front.

Today electrically initiated command wire land based explosive devices are pretty common as terrorist ambush devices, with the only issue being the potential visibility of the wire or the process of laying the wire between device and firing point.

Various engineers and inventors in the early decades of the 1800s refined electrical initiation and waterproofed systems to allow them to be used for command initiated defensive minefields on coasts or in rivers – these include the German, Siemens, the Prussian Schilling, the Russian Schilder and Pasley, the British Royal Engineer used such waterproofed electrically initiated charges for demolition purposes. By far the most interesting use, however and one which strangely receives scant attention (perhaps not so strangely given the secrecy of the project was Samuel Colt’s 1836 concept of an “Underwater Battery”).  This was an electrically initiated complex defensive array of underwater mines designed to protect ports and rivers.  They key part of this invention however was not the electrical initiation but Colt’s remarkable command system which I’m 99% certain used a “camera obscura” to project a live image of the area in which underwater mines had been carefully placed. The image was projected onto a “command panel” with electrical contacts built in so that when a ship approached the position of the mine the image of the ship was projected onto one of many metal contacts on the  “command panel” . All the operator had to do was to use an electrical cable from the battery stored underneath to the contact where the ship was displayed on the command panel when the live image of  the ship covered it and that device would be initiated.  Rather like a “magic wand” – touch the live image of the  ship you wish to destroy and it will explode  Such a remarkable integrated “augmented reality” observation and command system seems to be 200 years ahead of its time. I have written about the system before here. Someone needs to recreate one of these for a TV show.

Colt’s control panel. Note the convex mirror reflecting the image of the minefield from above.

Colt wrapped his invention in secrecy, but I think its pretty clear to me that his ingenious observation and control system was a first for initiating complex command wire minefields.  Interestingly, a few years later it appears the Austrians used such a system to protect Venice around 1860. How they got hold of Colt’s idea, I have no idea. Here’s how it was described:

Here’s an image of the Austrian command post.



I remain  fascinated by this system. A remote, visual, augmented-reality weapon system, invented by Samuel Colt in the 1830’s. Kept secret, then deployed by the Austrians in the 1860s then forgotten about. Wow!  And only a few years ago people were shocked when terrorists in Iraq used a video camera overlooking an IED to know when to initiate a device, but Colt beat them to it by 170 years on the Potomac!

So that’s land and sea, but what about air – surely command wire initiated explosive devices haven’t been used in the air ?  Well, actually they have, over 100 years ago. During the Salonika campaign in 1917, some balloons were used by British Forces as observation platforms.   German pilots decided to take on these balloons and shot down several, one pilot alone claiming 18 balloons .

A German aircraft attacking an observation balloon

Lt Finch of the British Army Ordnance Corps was asked to design a charge to be placed on a balloon, and this was to be detonated electrically when an enemy plane was close. He placed a 500 pound ammonal charge in a  60 gallon galvanised water tank and “the balloon went up” carrying the explosives connected to a 3000ft cable, on 28 November. As a German plane approached, piloted by Oberleutnant von Eschwege, it was exploded, and the enemy aircraft’s wings were blown off, killing him. Here’s some details of the aftermath which is interesting:

There was no celebrating, no cheering. The British official history states:

He came to his end as a result of a legitimate ruse of war, but there was no rejoicing among the pilots of the squadrons which had suffered from his activities. They would have preferred that he had gone down in fair combat.

Eschwege was given a burial with full military honors; six British pilots carried his coffin to the grave. A message was dropped over Drama airfield:

To the Bulgarian-German Flying Corps in Drama. The officers of the Royal Flying Corps regret to announce that Lt. von Eschwege was killed while attacking the captive balloon. His personal belongings will be dropped over the lines some time during the next few days.

The next day a German plane dropped a wreath and a message:

To the Royal Flying Corps, Monuhi. We thank you sincerely for your information regarding our comrade Lt. von Eschwege and request you permit the accompanying wreath and flag to be placed on his last resting place, Deutches Fliegerkommando.

A similar but unsuccessful device was used on the Western front.

So there we have electrically-initiated command-wire explosive devices on land, on sea, and in the air.

To close though, my favourite Salonika campaign story. Nothing to do with explosive devices!    The British army’s  efforts in the multi-national campaign in Salonkia did not go unnoticed. The Serbians, ostensibly the British Allies in the Macedonia  campaign, of which Salonika was a part, were most grateful for the arduous efforts of their allies.  They therefore proposed a glamorous medal be minted, something like “the Glowing and Glorious Order of the Serbian White Eagle”.  They proposed awarding 5000 of these medals to a random selection of the British forces who had taken part as a visible sign of their gratitude.  The superior Headquarters of British Forces in the Eastern Mediterranean was based in Cairo and an overworked staff officer in G1 was tasked with providing a list of the assigned honourees. Somewhere along the line the list was accidentally put in the wrong envelope. As a result, a list of 5000 soldiers across the Near East, many of whom had hardly even heard of Salonika but who “had not yet received a typhoid injection” were surprised to receive a flowery, ornate and shiny medal through the post – and 5000 hardened Salonika veterans probably got another typhoid jab.

1830-1840

Parisian Infernal Machines from about the time of Les Miserables

I’ve posted articles before about IED attacks on Napoleon Bonaparte in 1800 and on Emperor Napoleon III, in 1858, both attacks on their carriages as they went to the opera, along predictable routes in Paris.

There was however another famous “terrorist” attack between these dates on the French King Louis-Philippe, on 28 July 1835, but on his way to a parade in Paris, and not with an IED – here’s the story and the device used to attack him.

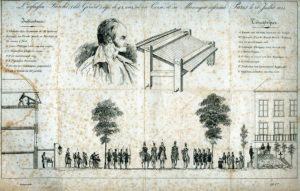

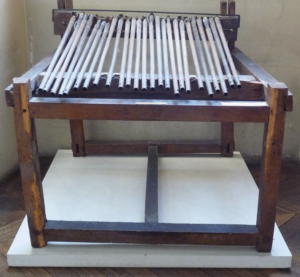

The attack occurred on the Boulevard de Temple in Paris. It was mounted by a Corsican terrorist/criminal/rebel, Giuseppe Mario Fieschi.  The device that he built with two accomplices from the Société des Droits de l’Homme is interesting. Reports at the time called the device a “machine infernale” which is the phrase often used to describe IEDs of the time. But this was no IED.  An image of the actual device, now in a french museum is shown below.  It consists of 25 gun barrels mounted on a wooden frame with the 25 barrels pointing slightly downward . The “machine’ was placed at the open window overlooking the route to be taken by the King and fellow dignitaries as they went to inspect a parade of troops.

The barrels were over charged with powder and it is thought up to three musket balls per barrel. As a result there were a number of cases of the breech exploding during the attack – I think you can see this on barrels 2, 14 and 20, numbered from the left.  One of these caused injury to Fieschi as he initiated the device.  I’m not sure of the exact initiation technique, probably Fieschi using a naked flame and swiping across the fire holes at the rear of each barrel. The injured Fieshci was arrested as he fled the scene, his wounds tended, and then after his trial his wounded head was removed from his body by the infamous guillotine.

In terms of target effect, the King was not killed but only slightly wounded. However the 75 musket balls caused carnage and 18 people were killed including Marshall Mortier.  Reports of the time make much of the dastardly deed and the ingenious machine (note that there were seven other plots against the king discovered that year alone – however it was not perhaps such an innovative attack as it might first appear. There are many references to multi barrel firearms going back to the 14th Century.  Around 1500 Leonardo da Vinci had designed similar systems for use in battle, and they were used on a number of occasions in the 17th century. They are referred to as an “orgue” – or organ, given the similarity to the multi-barrel and an organ.

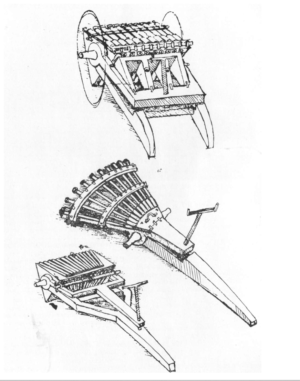

Leonardo Da Vinci’s designs for multi barrel weapons

19th Century

Booby trap IED in Florida – “Naught but a dead opossum”

…..in 1840.

A post a couple of months ago gave details of the development of IEDs by Confederate officer Brigadier General Gabriel Raines in the American Civil War. I’ve now found a record of the same officer using IEDs even earlier, in the Second Seminole Indian War in Florida in 1840. Here’s the story:

In 1839 Raines was posted as a company commander in north central Florida. In May 1840 he became commander of a single unit holding Fort King as other forces responded to (insurgent) activity at other Forts (FOBs). The insurgent forces seeing Fort King undermanned started to exploit the situation and killed two soldiers within sight of the Fort.  Raines wanted to seize the initiative and deter such attacks so developed an IED, a buried shell, covered with military clothing, designed to function if the clothing was picked up on a simple pull mechanism.  After several days waiting the IED exploded and Raines, with 18 men, went to the explosion site, but found “naught but a dead opossum”.  However while investigating his own IED he was attacked by a group of 100 Taliban Seminoles. Although they were fought off, Raines suffered serious injury, and was not expected to survive. Even his obituary was published in a newspaper. However he recovered, was promoted, and commended for “Gallant and Courageous service”. He went on to place a second IED but later had to remove if because his own soldiers were scared of it.  Raines’s actions were not approved by many in the US military.  20 years later when he used IEDs against the Union, his “dastardly business” was again condemned by Union Brigadier General William Berry who had not forgotten Raines’ exploits in Florida.

Raines died in 1881 of medical conditions associated with his injuries sustained in 1840.

Command IED

Early history of command wire electrically initiated IEDs

In some of my previous blogs I wrote about the first command wire IEDs occurring in the US Civil War, then had to correct myself as I found earlier examples in the Crimean war and then again earlier incidences by both Immanuel Nobel and Samuel Colt.

Well, I keep finding other perhaps earlier references as I dig into this and follow this “historical alley” and it’s really quite interesting and clearly things go back further in time than I had appreciated.  Here’s some extracts from what I’ve been digging up.

It starts with some further exploration into the efforts of Samuel Colt, the American industrialist and arms inventor. Separate from his efforts developing small arms, Colt for many years attempted to get the US government interested in a system for defending the US coastline which he referred to as his “Submarine Battery” which were essentially water-borne command initiated sea mines.  I attempted to try and find the inspiration for Colt’s efforts and the science on which he based his submarine munition technology.

I have in earlier blogs discussed the parallel work of Immanuel Nobel (father of Alfred Nobel) who developed command initiated sea mines for the Russian Navy at about the same time. It would appear that another 19th century military industrialist, this time the German Werner von Siemens was also developing very similar technologies perhaps a few years later in 1848, compared to Colt and Nobel who worked on their versions in the early part of the same decade. What is unclear is if these three entrepreneurial military technology developers were aware of each other’s developments.  Siemens’s devices were used to protect Kiel from Danish naval attacks in 1848.

But pertinent to the subject of electrical initiation of IEDs is a letter written by Benjamin Franklin in 1751 to Mr Peter Collinson of the Royal Academy in England which states

I have not hear’d, that any of your European Electricians have hitherto been able to fire gunpowder by the Electric Flame. We do it here in this Manner.

A small Cartridge is filled with Dry powder, hard rammed, so as to bruise some of the Grains. Two pointed Wires are then thrust In, one at Each End, the points approaching each other in the Middle of the Cartridge, till within the distance of  half an Inch: Then the Cartridge being placed in the Circle (circuit), when the Four Jars (galvanic cells) are discharged the electric Flame leaping from the point of one Wire to the point of the other, within the Cartridge, among the powder, fires It, and the explosion of the powder is at the same Instant with the crack of the Discharge

I wonder if we can call this the first electrically initiated IED? Albeit manufactured with pure science in mind rather than as a weapon.

Inspired directly by Franklin, the Italian Allessandro Volta wrote to a colleague in 1777 describing how he had fired muskets, pistols and an under-water mine by means of his electrical piles. I suspect this was the first electrically initiated IED actually intended as a weapon.

Volta’s Italian compatriot, working on a telegraph, Tiberius Cavallo then took a step further in 1782 in the following manner

The attempts recently made to convey intelligence from one place to another at a great distance, with the utmost quickness, have induced me to publish the following experiments, which I made some years ago. The object for which those experiments were performed, was to fire gun-powder, or other combustible matter, from a great distance, by means of electricity. At first I made a circuit with a very long brass wire, the two ends of which returned to the same place, whilst the middle of the wire stood at a great distance. In this middle an interruption was made, in which a cartridge of gunpowder mixed with steel filings was placed. Then, by applying a charged Leyden phial to the two extremities of the wire, (viz. by touching one wire with the knob of the phial, whilst the other was connected with the outside coating) the cartridge was fired. In this manner I could fire gunpowder from the distance of three hundred feet and upwards.

I think this may effectively be the first command wire initiated IED.

The next issue to be dealt with was waterproofing electrical cable and a variety of attempts were made using a range of substances including india rubber, varnish and tarred hemp. The Russians appear on the scene. Baron Schilling Von Canstadt was a Russian diplomat in Bavaria who took great interest in scientific developments. On his return to St Petersburg in 1812 and driven by war with France, Schilling Von Canstadt developed electrically initiated charges that could be fired across a river, the cable running through the water, with a carbon arc initiator. These were demonstrated in 1812 but do not appear to have been adopted by the Russian Army. Later after the Russians entered Paris after Napoleon’s defeat he undertook a number of similar experiments crossing the Seine.   Here’s a description of him demonstrating a command wire IED to Tsar Alexander I

Once Baron Schilling had the honor to present a wire to the Emperor in his tent. He begged his Majesty to touch it with another wire, whilst looking through the door of the tent in the direction of a very far distant mine. A cloud of smoke rose from this exploding mine at the moment the Emperor, with his hands, made the contact. This caused great surprise, and provoked expressions of satisfaction and applause.

His successor, Tsar Nicholas I was fortunate to escape serious injury in 1837 when an electrically initiated charge was used on a demonstration to destroy a bridge but the demonstration went wrong and the charge detonated prematurely or with larger effect than expected.

The next on the scene were the British. Colonel Pasley of the Royal Engineers was inspired by a newspaper report of the accident in Russia and working with the electrical scientist Wheatstone developed insulated cables and platinum filament exploding detonators around 1839.

Also in the 1830s, American scientist Robert Hare developed “galvanic techniques” for quarry blasting.

Enough for now – some time in the future I’ll return to Colt’s submarine battery, but will state here that as a 15 year old boy in 1829 it appears he had his first success in initiating an explosive charge under water.

1830-1840

Electrically Initiated Command Wire Devices – the first?

In an earlier post I suggested that the first electrical command wire initiated device appeared in the American Civil War. This was incorrect, as I believe the truth is that such things were first developed by the Russians in the 1830s as electrically initiated sea mines  and later used in the Crimean war by the Russians  .  A “forgotten theatre” of that war was a series of naval engagement in the Baltic as the British and its allies blockaded Russian ports. The Russians protected their ports with ingenious improvised sea mines and a number of these were electrically initiated.

These first “galvanic” initiated mines were developed by Engineer-General Karl Shilder, who was a senior engineer in the Russian Navy – and he had a chance encounter with Alfred Nobel’s father, Immanuel Nobel in the late 1830s.  Immanuel Nobel had developed the concept of a rubber backpack containing explosives for use by the military as a contact initiated explosive mine. He failed to gain interest from the Swedish military so took his ideas to the Russians.  Shilder was on a committee set up by the Tsar to investigate electrically initiated mines. Nobel suggested his contact mine as an alternative and subsequently the idea was presented and demonstrated to the Tsar who rewarded Nobel with 3000 Roubles.  Nobel set up a facility to develop the concepts further and succeeded in a trial in 1842 to blow up and sink a three-masted ship – gaining a further substantial financial prize from the Russian government.

When the Crimean war began Nobel’s mines and other command-initiated devices were used extensively on land and sea, and in particular to protect the Russian naval port of Kronsdtadt on an island in the approaches to St Petersburg.  A British operation to recover and exploit this new foreign technology was mounted and Russian mines was recovered and carefully tested.   Other British attempts to exploit the Russian technology were less successful – a number of senior British naval officers, including the commander, Admiral Dundas were badly wounded when examining recovered Russian devices.  Here’s a diagram of a Russian contact mine, a description of some early naval EOD actions, technical device exploitation and a fascinating account of the stupidity of senior officers, twice in one day – all in one:

They are made cone-shaped of strong zinc, about two feet deep, and fifteen inches wide at top. The bottom holds the powder, about eight pounds; the top is full of air, to keep it up; a strong tube (B B B) goes through the top, and reaches the powder; a small tube about the size of a lead pencil is hung in the centre of the large one (D D) – it pivots on its centre; and fixed in the bottom of the large tube, in the little chamber of priming-powder (C), is a small glass tube (+), sticking up into the bottom of the small tube. You will see that if anything pushes the upper end of the small tube on one side, as I have tried to show in figure 2, as it is pivoted in the centre, it must break off the glass tube, which is filled with some ignitible stuff, which fires the priming-powder (C), and of course explodes the machine. Now the two thin tubes of iron on the top (A A) slide to and fro, out are kept away from the tubes by slight springs. On being touched by a ship’s side, or even pressed with a finger, they shove the small tube aside, as in figure 2, and explode the machine. How any were hauled into boats without exploding seems marvellous; but some lost their tubes when canted up to be hauled in; others had been put down with caps on the tops, which prevent their going off. These ought to have been removed; but the parties putting them down had been so afraid of them, they had preferred leaving them safe for us to risking removing the caps themselves. I don’t know what the Grand Duke will say if he knows this! Admiral Seymour and Hall got one up, and hauled it over the bows of the gig. How the little slides were not touched is wonderful. It was then passed aft; and the master of the fleet joining them, they, thinking it was damaged with wet, got discussing the way to set it off. Stokes touched the slide, shoved the tube a little on one side, but evidently not enough to break the glass tube. They then took it to Admiral Dundas, and again they all played with it; and Admiral Seymour took it to his ship, and on the poop had the officers round it examining it. Hall, being in the act of hoisting a second one, was on the quarter-deck. Some of the officers remarked on the danger of its going off, and Admiral Seymour said, ‘Oh no; this is the way it would go off,’ and shoved the slide in with his finger, as he had seen Stokes do it. It instantly exploded, knocking down every one round it. As Hall looked round he saw the captain of marines, a son of Sir John Louis, carried down the ladder, with every bit of clothes burnt off him and covered with blood. He then heard, ‘The admiral is killed.’ The latter was lying insensible, his face covered with blood; but he soon recovered, though very seriously injured in one eye and the head. The poor captain of marines had pieces of the machine in his legs, besides the burns. Pierce, the flag-lieutenant, much hurt, a piece of iron going through the peak of his cap, and knocking it into the mizzen-top, but not touching his head; a young volunteer also. The signalman holding it up at the time not very much hurt, though burnt; and one lieutenant and the chaplain, though next to Admiral Seymour and close to it, only had their hair singed, and were not hurt at all. Two or three men also slightly wounded. It is a wonderful escape, for pieces of it flew down the main hatchway; and we know that the Russians getting one into a boat exploded it, and killed seventeen men. Admiral Seymour is much less hurt than was first supposed, as he is able to sit up to-day; but concussion of the brain is what they fear. He can see a glimmer of light with the eye, so it is hoped he will recover the sight. The marine officer’s is the most dangerous case, but it is hoped he is doing well also.

The extraordinary thing is that the same evening Admiral Dundas and Pelham were examining a tube; so Caldwell went and got an empty machine (that had been cut open) to put the the tube in, to examine how it explodes. While they were close round. it, the admiral shoved the slide, and the tube exploded, shooting up in the middle of them, and hurting the admiral’s eyes so much that they were looking inflamed and bloodshot yesterday morning when he was explaining all this to me.

Moral of the story – don’t let senior officers fiddle with recovered devices.  In future blog posts – How the US Army studied the Russian experience of contact and command wire initiated devices and did or didn’t employ them in the American Civil War – and the strange story of another US-Russia connection regarding command wire IEDs.



Update on Sunday, October 30, 2011 at 6:32PM by Roger Davies

I should make clear that the Russian experiments only just preceded perhaps more successful US experiments in electrical mine initiation.  In 1841 – 1843 Samuel Colt demonstrated successfully on a number of occasions electrically initiated sea mines on the Hudson and then Potomac rivers sinking a number of target ships. Later developments were undertaken by Maury, a confederate naval officer in the 1860s

Update on Friday, September 28, 2012 at 6:14PM by Roger Davies

see later post  http://www.standingwellback.com/home/2012/9/26/siemens-tangents-command-wire-ieds-of-1848.html
